E-BRS Easy Rail Videos

E-BRS-27 and E-BRS-41

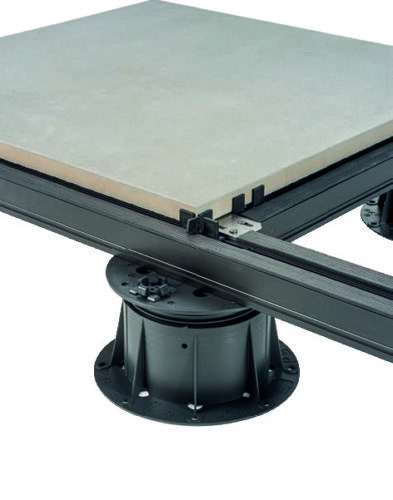

The E-BRS aluminum joists are available in 27 mm (1.06 in) and 41 mm (1.61 in) heights and measure 2350 mm (92.5 in) in length. They feature factory-installed EPDM shock-absorbing seals, built-in water drainage holes, and pedestal position markers. The E-BRS-27 is designed for up to 600 mm (23.6 in) pedestal spacing, while the E-BRS-41 supports up to 800 mm (31.5 in). More Info + Specs

E-BRS-U-WALL-PP

The U-WALL-PP is a perimeter spacer that attaches to E-BRS aluminum joists to create a consistent 5 mm (3/16″) gap between the paver and the wall, allowing for proper water drainage and terrace protection. Its flexible fins conform to curved or irregular walls. The U-WALL-PP slides over modified E-BRS tabs and is secured with screws. It supports pavers that overhang from the joist and maintains a uniform gap even though wall distance may vary. More Info + Specs

E-BRS-CONNECTION

The E-BRS-CONNECTION makes it easy to join two E-BRS-27 or E-BRS-41 joists end-to-end. Designed to speed installation and ensure stability, this connector must be placed on a pedestal and secured using U-BRS-VIS screws. For E-BRS-27, fins on the connector must be removed for a perfect fit. EPDM seals should be removed in the joint area for proper alignment. More Info + Specs

E-BRS-WALL

The E-BRS-WALL spacer is designed to stabilize the last row of pavers when joists run parallel to a wall. It creates a consistent 5 mm (3/16 in) drainage gap between the tile and wall to allow proper water runoff and prevent pooling. Fully compatible with E-BRS-27 / 27-B and E-BRS-41 / 41-B joists, and also compatible with U-BRS joists when paired with 3 mm EPDM. Use with U-BRS-VIS screws for secure attachment. More Info + Specs

E-BRS-TOP-LINK

The E-BRS-TOP-LINK is a versatile connector that simplifies the process of linking aluminum joists together at angles between 45° and 90°. It ensures a fast, secure, and reliable connection for pedestal-supported decking systems using E-BRS or U-BRS joists. This accessory is especially useful in complex layouts where joists need to be joined at angles, helping installers maintain alignment and structural integrity across the deck system. More Info + Specs

U-BRS-STOP

The U-BRS-STOP is a tile edging accessory that slides into the end of E-BRS or U-BRS aluminum joists to securely hold the edge of the pavers in place. It maintains a consistent 10 mm (3/8 inch) gap between the pavers and the wall, allowing for proper water drainage and helping to protect adjacent waterproofing and vertical surfaces. Designed for use where the joist ends at a 90-degree angle, the U-BRS-STOP supports two pavers on either side of the E-BRS Tabs and fastens in place using U-BRS-VIS screws. More Info + Specs

E-BRS-BRACKET

The E-BRS-BRACKET is a stainless steel bracket that enables right-angle connections between joists, making it ideal for finishing the edges of terraces or constructing stair risers. It is part of the terrace finishing kit (KIT-U-BRS-END with E-BRS-BRACKET) that helps securely support vertically positioned pavers along the deck edge. The bracket features a built-in sliding mechanism that ensures precise alignment and a strong, secure fit between components. More Info + Specs

E-BRS-STOP-ROUND

The E-BRS-STOP-ROUND is a one-piece end spacer and angular joist holder designed for use with the Buzon E-BRS Easy Rail System. It slides into the aluminum joist to secure pavers or tiles at the edge of a terrace, helping maintain clean lines and prevent shifting. Ideal for use with porcelain or stone pavers. More Info + Specs

U-BRS-TABS

U-BRS-TABS are spacer tabs designed to regulate the spacing between pavers, ensure alignment, and allow rapid drainage of excess water. These tabs facilitate the installation of a wide variety of surface materials, including stone or porcelain pavers, composite or wood decking, metal or fiberglass grating panels. Each tab module features four detachable fins that can be easily removed to accommodate a variety of layout configurations. The spacer tabs slide directly onto U-BRS or E-BRS aluminum joists without the need for tools and remain invisible after paver installation. More Info + Specs
