E-BRS System Accessory: U-BRS-STOP

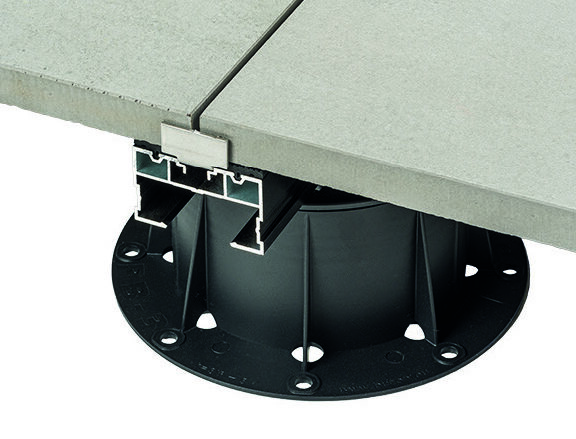

The U-BRS-STOP is a tile edging accessory that slides into the end of fixed E-BRS or U-BRS aluminum joists. It securely holds peripheral pavers in position while maintaining a consistent gap, up to 10 mm (3/8 inch), between the paver and the wall. This gap ensures proper water runoff and protects adjacent walls and waterproofing from damage. The U-BRS-STOP is designed for joist terminations with a 90-degree angle. It supports the edge of two adjacent pavers separated by E-BRS Tabs and is fastened using U-BRS-VIS screws (1/8 inch x 1 inch). For angled joist ends, use the E-BRS-STOP-ROUND.
What You’ll Learn in this Video
- How to attach the U-BRS-STOP to the end of an E-BRS Easy Rail or U-BRS aluminum joist
- Placement relative to E-BRS Tabs for supporting two adjacent porcelain pavers
- How the U-BRS-STOP helps maintain a uniform 10 mm (3/8 inch) wall gap
- How it protects paver edges, walls, and waterproofing
- When to use U-BRS-STOP vs. E-BRS-STOP-ROUND for angled conditions
U-BRS-STOP
The E-BRS Easy Rail System is a complete solution for supporting porcelain pavers and other surface materials on rooftop decks, terraces, and other raised flooring applications. It features Buzon PB-Series adjustable pedestals, reinforced aluminum joists, tool-free spacer tabs, and a suite of smart accessories engineered to streamline installation and ensure long-term performance.
The U-BRS-STOP accessory contributes to the system by preventing lateral movement of joists, maintaining layout integrity during installation and over time. Learn more about the full system on the E-BRS Easy Rail page.
