Secure Terraces Against Wind Uplift
Secure Rooftop Terraces Against Wind Uplift
The Uplift Challenge
Wind uplift can dislodge rooftop pavers, creating safety hazards, damage, and costly callbacks. Traditional systems either don’t adequately secure tiles or make future access difficult.
The Buzon Wind Uplift Solution
Buzon’s Wind Uplift System integrates with the E-BRS Easy Rail Aluminum Joist System to lock pavers securely in place. Contractors can kerf cut pavers onsite, insert lock plates and tabs, and use invisible lock washers to hold everything down, with the ability to unlock pavers later if needed.
How It Works
Kerf Cut Pavers Onsite by Contractor

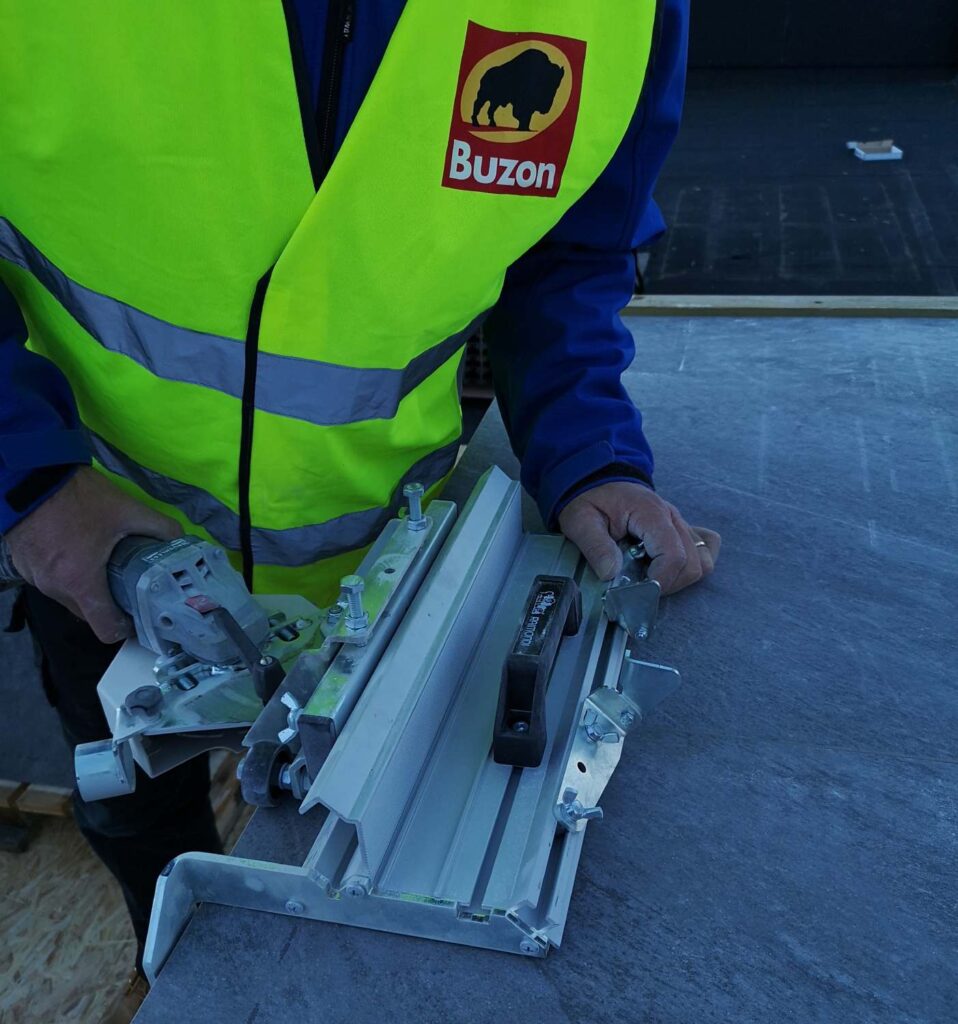

Contractors cut a small groove into the edge of porcelain pavers using a grinder and jig.
Insert Lock Plate + Tabs into Rail System
A stainless-steel lock plate attaches to the joist, and tabs slide into the rail system.
Secure with U-Lock-Washer in Place
Invisible toothed lock washers (½” or ¾”) are screwed into place to hold the pavers down.
Provide Easy Maintenance Access
Washers can be rotated with a thin flat-blade screwdriver to release an individual paver.
Installation Guide and Product Components
The installation manual provides detailed instructions and specifications for installing the Buzon Wind Uplift System with the E-BRS Easy Rail Aluminum Joist System, including:
- System Components: E-BRS joists (24 mm / 38 mm), PB-Series pedestals, PB-KIT-2, 3×25 mm screws, and Wind Uplift accessories.
- Tile Installation: Guidance for center and perimeter tiles, including sliding lock plates onto joists and snapping tabs over plates.
- Tile Specifications: Groove dimensions and minimum tile thickness of 20 mm.
- Maintenance Access: Instructions for securing pavers and unlocking tiles to access the substrate or services below.
Why Choose Buzon
- Proven pedestal + rail solutions trusted worldwide
- Safe, secure, and serviceable design
- Easy installation with standard tools
- Backed by technical expertise and contractor support
Ready to secure your next rooftop terrace project?
Contact us about your pedestal wind uplift paver system needs at (503) 954-3336, email sales@buzonpedestals.com, or fill out the form.
